Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: Jinwei
  • Model Number: JW12000
  • Power Source: Electric
  • Application: Auto
  • Capacity: 12000lb(5443kgs)
  • Warranty: One year

Packaging & Delivery

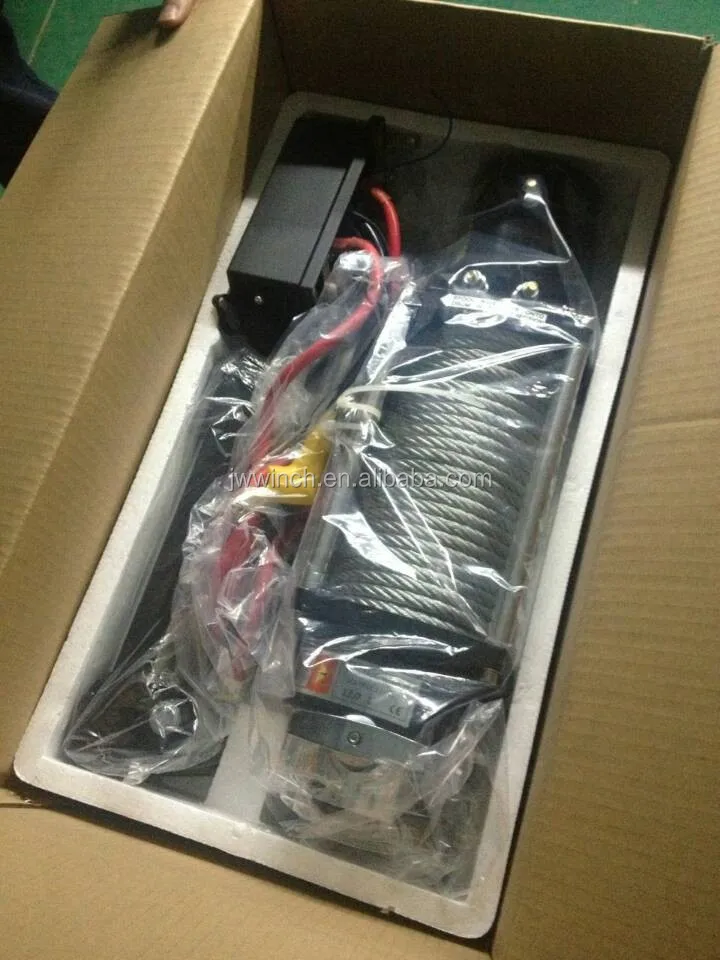

Packaging Details 1pc/ctn
honey comb carton or doube corrugated carton with foam
N.W./G.W.:37/38kgs
Mea.: 60*34*25cm
Delivery Time Shipped in 6 days after payment

4x4 12000lb electric winch

Single line rated pull: 12000lb (5443kg)
Motor: 6.6hp/4.85kw, series wound 12V
Control Remote switch: 12ft (3.7m) lead
Gear train: 3 stage planetary
Gear reduction ratio: 191: 1
Clutch: Key way cam clutch
Braking: Automatic load-holding brake
Drum size: Diameter 63.5mm *Length 224mm
Cable: 28m of 9.1mm diameter
Fairlead: 4-way roller fairlead
Remote control: Included
Wireless Remote control: Included
Battery recommended: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finishing : Black, dark grey coating
Overall dimension (length*width*height): 538*160*214mm
Mounting bolt pattern: 254*114.3mm


Our winches have the features as below:
1. are built with super heavy duty heat treated steel crafted gears for super strength and a long life span
2. 500A sealed and waterproof albright type solenoid. Some factories use 450A solenoid. Some factories even use 2pcs 200A silver solenoid.
3. key way cam clutch
4. the new metal bayonet type connector with locking action prevents wander lead plug falling out into the mud
5. bilateral roller brake, load-hold in two direction, offers more installation options
6. sealed winch body, welling working in water
7. every winch is tested on pulling capacity and function
8. are spooled with genuine SK75 dyneema rope (for winch with dyneema)
9. hawse fairleads are an anodized aluminium which won't discolor or rust. Most hawse fairleads are just polished and will discolor or rust within days  (for winch with dyneema)
