Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Jinwei winch
  • Model Number: JW4000-B
  • Power Source: Electric
  • Application: ATV/UTV
  • Capacity: 1814KG
  • Motor: 1.0kw/1.34hp 12V
  • COLOUR: Gray( customize available)
  • HS Code: 8425319000
  • Warranty: 12 Months
  • Certification: CE, ISO 9001:2008

Packaging & Delivery

Packaging Details 1pcs/ctn
Packaging for carton
Delivery Time Order 7days later (based on MOQ)

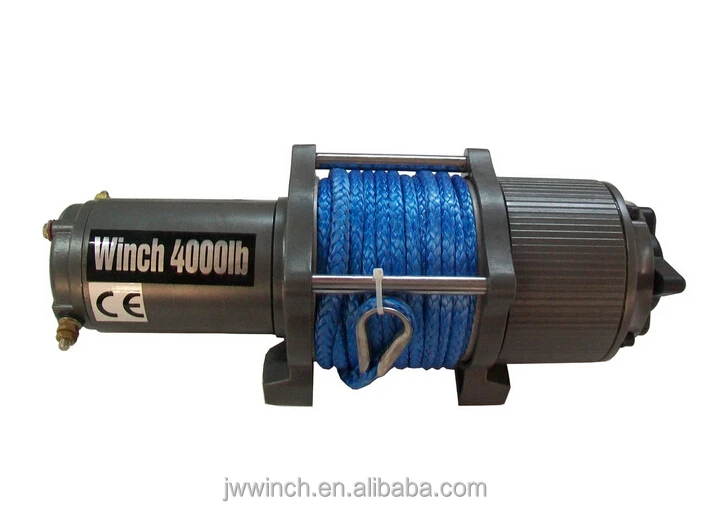

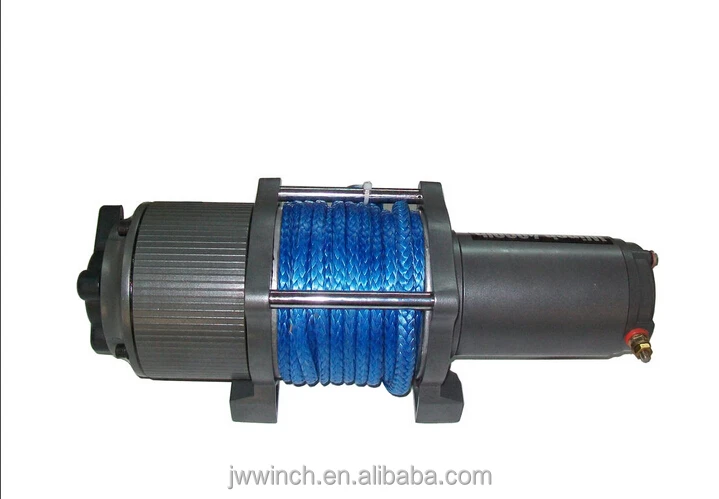

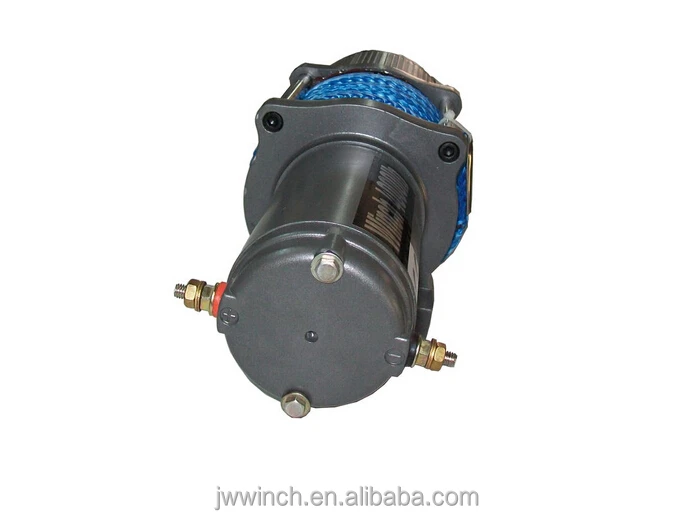

 4000 lb 12V Free spooling clutch Rope Electric UTV Winch / Winches

1) Free spooling clutch.4000 lb 12V Free spooling clutch Rope Electric UTV Winch / Winches

2) Automatic braking action

3) Specially designed differential planetary gearing for heavy duty applicatio



Specifications:



Rated line pull

 4000LB (1814kg)single line

 Motor

 Permanent magnet, 1.0kw/1.34hp(12V)

 Gear reduction ratio

 153:1

 Geartarain

 3-stage planetary

 Rope (Dia*L)

 Φ6.5mm*13.5m

 Drum size (Dia*L)

 Φ13.9"*4.6"*4.92"(353mm*117mm*125mm)

 Packing size

 41.5*28*18cm 1PC/CTN

 Weight

 N.W/G.W: 11kg/12kg


LINE SPEED AND AMP DRAW (FIRSRT LAYER) 12V


Line Pull

lb

NO

500

1000

1500

2000

2500

3000

4000

kg

LOAD

227

454

680

907

1133

1361

1814

Line Speed

ft/min

23.7

23.1

20.6

16.7

13.4

10.7

8.5

6.79

m/min

6.7

5.95

5.3

4.3

3.45

2.75

2.2

1.75

Motor

Amps

26

35

70

98

107

129

138

205



Line pull and cable capacity


Layers of cable

1

2

3

4

5

Rated line pull per layer

Lb
Kg

4000

2817

2573

2363

1975

1814

1278

1167

1072

896



Notice:

  • Do not use the winch as a hoist
  • Do not operate and spool under full load over one minute continuously
  • When motor is overheating, please stop for a while to cool down to ensure a longer life of the winch
